In stacked bar charts, only the bottom segment begins at zero. The segments above it “float” on top of other values, which makes them harder to measure accurately by eye. If you’re trying to compare the middle portion of multiple stacks, you’re essentially estimating. Grouped bar charts remove that guesswork. Every bar starts at the same baseline. That shared starting point gives each variable a fair and equal frame of reference, empowering stakeholders to compare heights quickly and confidently.

The structure that grouped bar charts have make outliers stand out. If one specific variable—say, Arsenic at Site B—spikes dramatically compared to the same variable at other sites, you’ll see it immediately. The difference isn’t buried inside a stack or influenced by surrounding values. It stands independently, which is exactly what you want when identifying anomalies or areas of concern.

Ultimately, grouped bar charts prioritize the value of the pieces, not the sum of the pieces. When your goal is to understand how individual variables compare across groups, this format keeps the focus where it belongs: on the distinct measurements themselves. You’re not asking, “What’s the total?” You’re asking, “How do these specific values differ?”

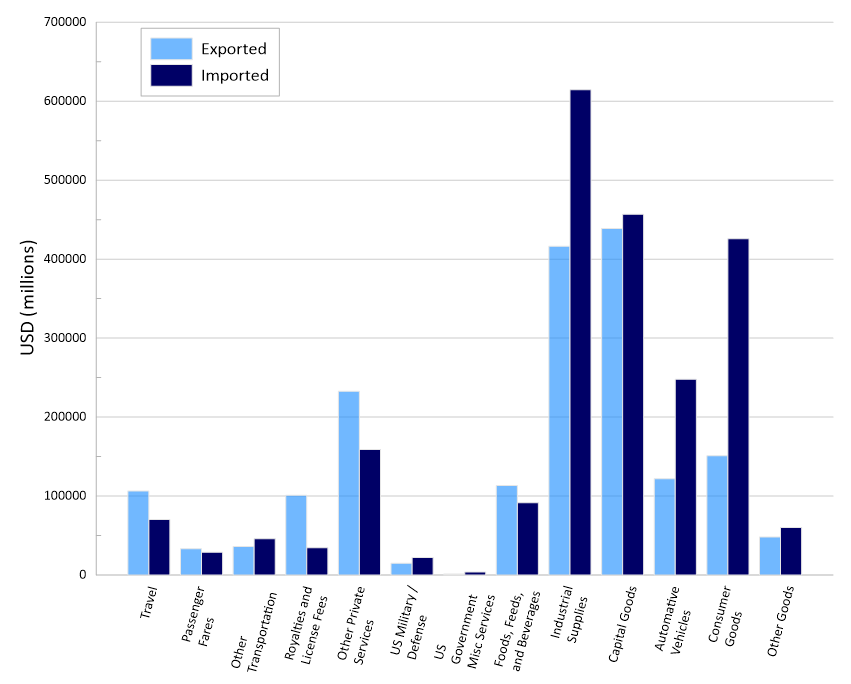

Grouped bar charts work best with discrete categories, which is data that has clear, named groupings rather than a continuous progression of numbers. Here are a few examples:

• Sample IDs
• Soil types
• Engineering alloys

These are clearly defined units that can be grouped and compared directly. If your data flows continuously over time or distance, another chart type—like a line chart—is often more appropriate.

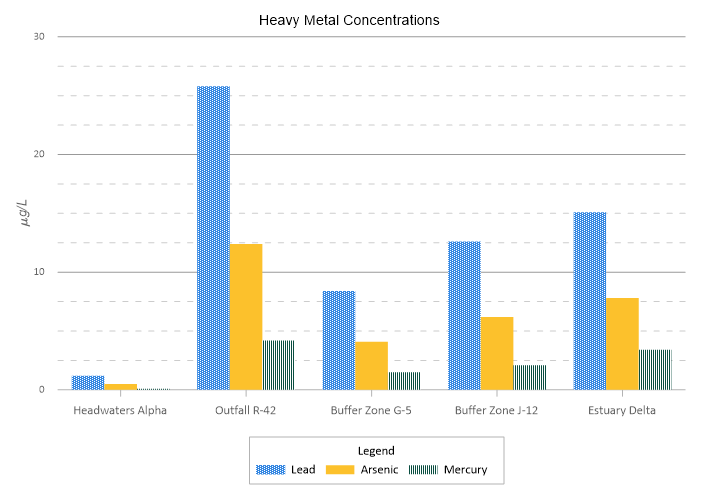

A grouped bar chart is especially powerful when you’re comparing multiple variables across the same groups. Examples include measuring Lead, Arsenic, and Mercury levels across different well sites. Instead of looking at one variable at a time, you get a “snapshot” of the chemical signature of each site, equipping you to see how the variables move in relation to one another.

A grouped bar chart is specifically designed for nested data where your main categories—like “Project Sites”—contain smaller sub-groups, like “Pre-treatment” vs “Post-treatment.” This structure empowers you to maintain the high-level comparison between sites while simultaneously seeing the internal change caused by the treatment.

This is non-negotiable. Because grouped bar charts rely on a shared baseline for accurate comparison, the y-axis must start at zero. Adjusting the axis to begin at a higher number—such as 50 instead of 0—may make differences appear more dramatic, but it also distorts the visual relationship between values.

In geoscience and engineering communities, truncating the y-axis is considered misleading. If the purpose of the chart is to compare magnitude, the baseline must be honest. Starting at zero ensures that what stakeholders see reflects the true scale of the data.

Consistency builds trust. If “Lead” appears as the first bar in Group A, it must also appear first in Group B and in every group that follows. Switching the order forces viewers to stop and reorient, increasing cognitive load and opening the door to misinterpretation. A predictable structure empowers stakeholders to scan naturally from group to group without recalibrating their understanding each time.

Color should clarify, not compete. Avoid the “rainbow” effect, where every bar is a different bright color. While it may look dynamic, it can quickly become distracting, especially when multiple groups are involved. Instead, use distinct but professional tones, such as muted blues, greys, and teals. The goal is differentiation without visual noise. When colors are intentional and restrained, the data remains the focus.

Consider where your legend lives. A legend should support interpretation, not interrupt it. Position it where it’s easy to reference—commonly in the top right corner or along the bottom—without pulling attention away from the bars themselves. If stakeholders have to hunt for the legend or repeatedly shift focus, the comparison loses efficiency.

Clarity depends on restraint. If you try to include too many bars within a single group—say 15 or 20—the chart quickly becomes crowded and difficult to read. Labels overlap, colors compete, and the visual comparison loses its precision. There’s a practical sweet spot to de-clutter your visual: typically 2–5 bars per group. Within that range, comparisons remain clean and manageable. Beyond that, the visual begins to strain under its own weight.

Perhaps you’re monitoring water quality across four river tributaries. For each location, you’re measuring pH, dissolved oxygen, and salinity. A grouped bar chart equips you to compare those three parameters within each tributary and then scan across tributaries to see where conditions shift. If dissolved oxygen drops sharply at one site, it stands out immediately. Nothing is buried inside a stack. Nothing requires estimation. When environmental thresholds are involved, that clarity matters.

Consider a materials lab evaluating five different aluminum alloys. You want to compare the yield strength and ultimate strength for each alloy. Placing those two measurements side by side within each alloy group makes the structural differences obvious. Engineers can quickly see which alloy has the strongest performance profile and whether the gap between yield and ultimate strength is acceptable for the intended application. In this context, precision isn’t optional. It’s foundational to safety and performance.

Grouped bar charts are also powerful tools for validating predictive models. Maybe you’re comparing predicted values with observed field data. Placing them adjacently makes deviations between the two immediately measurable. You can see whether the model is overestimating, underestimating, or closely matching reality, providing the precision necessary for rigorous technical verification.
